Description

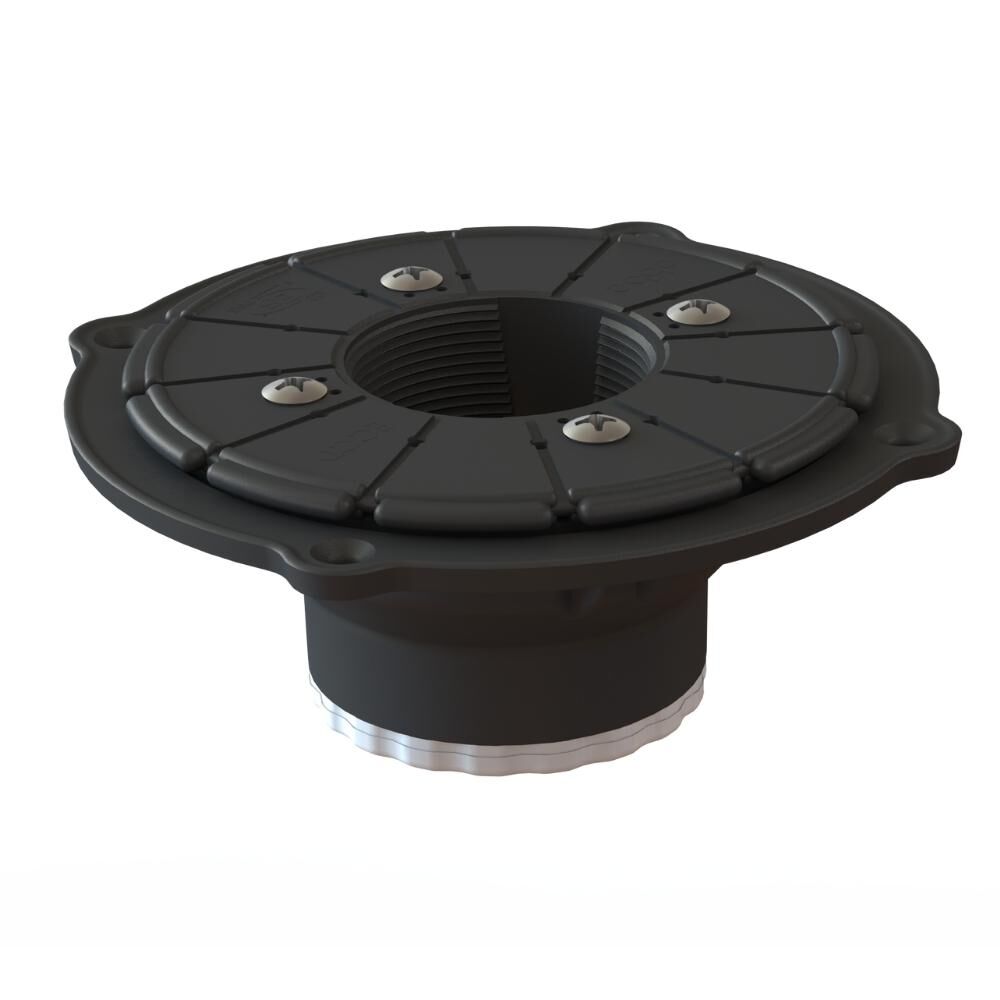

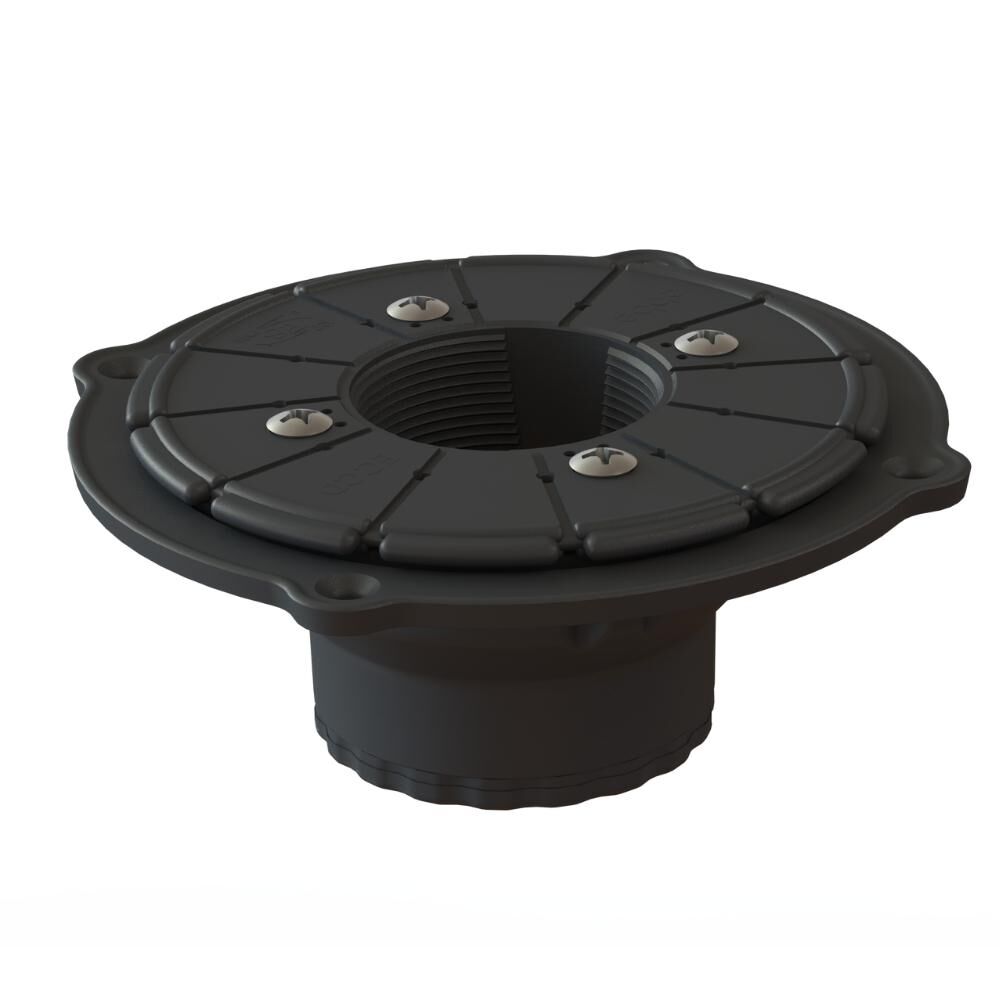

The Ebbe Clamp Collar Drain is the latest in drain technology. Not only does it combine all the best highlights from other drains, but includes original features for ease of installation and optimal function. These features include:
Raised Outer Rim: The raised rim helps you screed the pre-slope without hitting obstructions.
Clamp Heels: Clamp heels focus pressure on the outer edge of the clamping ring to provide the best clamp possible.
Internal Screws: The clamping bolts are located at the inner circumference of the drain. No need to make extra cuts or search for the bolts through the membrane.
Fits a 4″ subfloor cut: A 4-inch hole saw makes the perfect cut. No beveled edges, no odd shapes to chisel out.
Phillips head screws: Don’t waste time looking for that wrench or socket. Simply use your drill with a Phillips bit.
Thick Mortar Bed Compatible: Invert the clamping ring to accommodate mortar beds up to 4”.
Easy Subfloor Mounting: A flat flange with 4 mounting holes allows the drain to be securely fixed to the floor.
Compatible with Ebbe Square Drain Risers and Ebbe LEGACY Drains
